- Description
Specifications
Product type:
High Frequency Digital X-ray Radiography System
Power:
AC 380V ± 38V
System configuration
| MY-D049J Digital High Frequency Radiography | |
| High Frequency High Voltage X-ray Generator | |
| X-ray Tube Assembly | Kailong/1080 Made-in-China |
| Collimator | |
| Digital Detector | Rayence 1717SGC/SCC Made-in-Korea |
| DR Machine Frame | |
| Radiography Table | |
| Computer and LCD | DCSM1F/ML2002 |
| Synchronous box | |
| High Voltage Cable | 75kV (length: 8m) |
| Grid (Brand:JPI) | 100cm and 180cm Made-in-Korea |

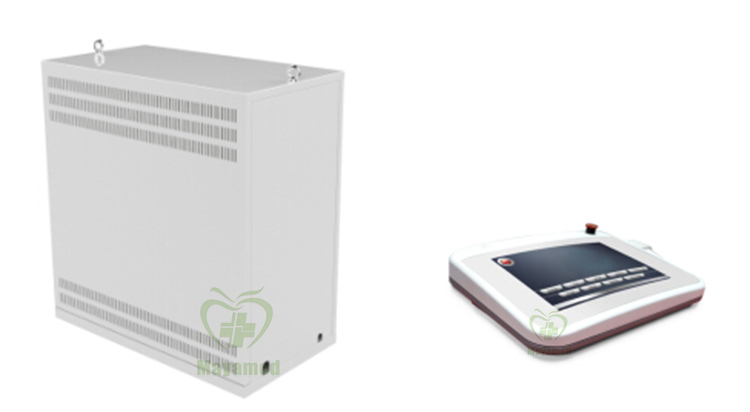

High Frequency High Voltage X-ray Generator D049J
| operating console | |
| Power | AC380V ± 38V |
| Radiography Tube Voltage | 40kV ~ 150kV |
| Radiography Tube Current | 10mA ~ 630mA |
| Time | 2ms ~ 6300ms |
| Allowed Internal Resistance | 380V: 0.5Ω |
| Allowed Frequency Variation | 50Hz/60Hz ± 1Hz |
| Working Frequency | ≥30kHz |

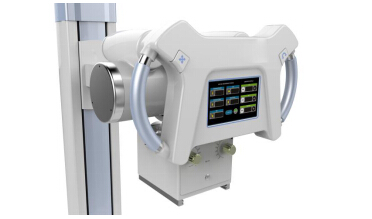

X-ray Tube Assembly KAILONG/1080
| Focus | 0.6mm/1.2mm |
| Rotating Speed | 2800rpm |
| Peek Tube Voltage | 150kV |
| Small Focus | 20kW |
| Large Focus | 50kW |
Collimator M-38
| Mode of adjustment | Manual |
| Power | 24VAC |
| Inherent Filtration | 1.2mmAL |

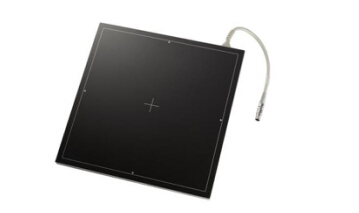

Digital Detector Rayence 1717SGC/SCC
| Scanning Area | 17 × 17 inches |
| Spatial Resolution | not less than 3.9lp/mm |
| Total Pixel Matrix | 3,328(h) × 3,328(v) |
| Pexel Pitch | 127 |
| Image Preview Time | not more than 2s |

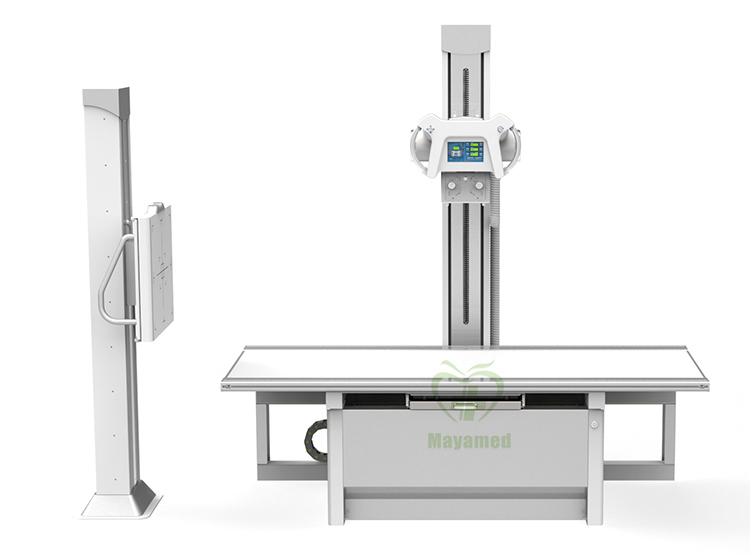

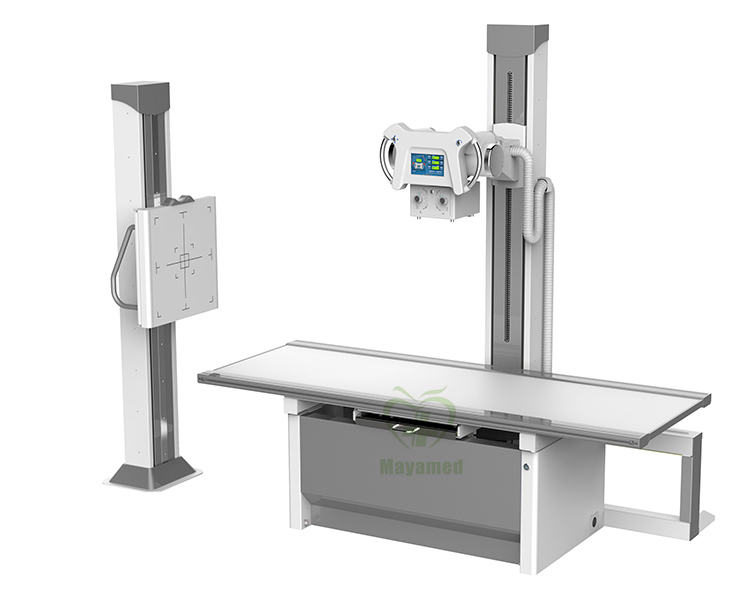

DR Machine Frame
| Range of horizontal movement of bed | ≥250mm |
| Rang of Vertical movement of bed | ≥825mm |
| Tabletop Size (Length × Width × Height) | 2100mm × 825mm × 655mm |
| Mode of Operation | Manual or electronic |
| Load-bearing | Less than 250kg |

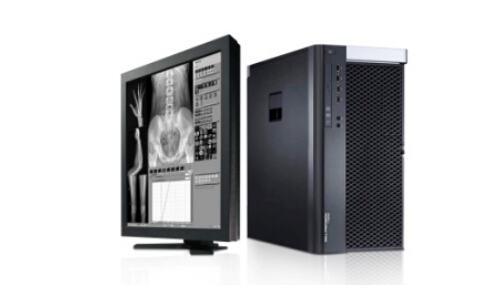

Computer and LCD DCSM1F/ML2002
| CPU | ≥2.8GHz |
| Memory | ≥2GB |
| Disk Capacity | ≥250GB |
| Medical LCD | 19 inch |
