MY-D005 hospital 100mA Medical x-ray System

Your position: Home > Medical X-ray machine > 100mA,125mA,200mA X-ray machine

Description

Specifications

USE：General radiography，Filter-ray device radiography

Unit Configuration
Control，HT generator unit，Ht cable，X-ray tube uni，Diagnostic table，Collimator.

MAIN CHARACTERIDTICS
1、Single table and single tube
2、Design according to the electric mechanism of middle-size machine, the function is reasonable function.
3、High-voltage system is of split structure, with high-voltage generator of full-wave rectification and stable operation
4、Supply voltage (V), photograph kilovolt (kV) and infinitely variable control.
5、Equipped with the manostat for filament of X-ray tube and the spacecharge compensator as to ensure the stable and accurate output
6、Equipped with the capacity limitation and portection circuit and Kv mA S interlock limit protection
7、The timer circuit grade according to R10 priority coefficient and an exact time control
8、The photographic flat bed has a vibrating ray-filter
9、The pillar has only the bottom trick, with easy installation.

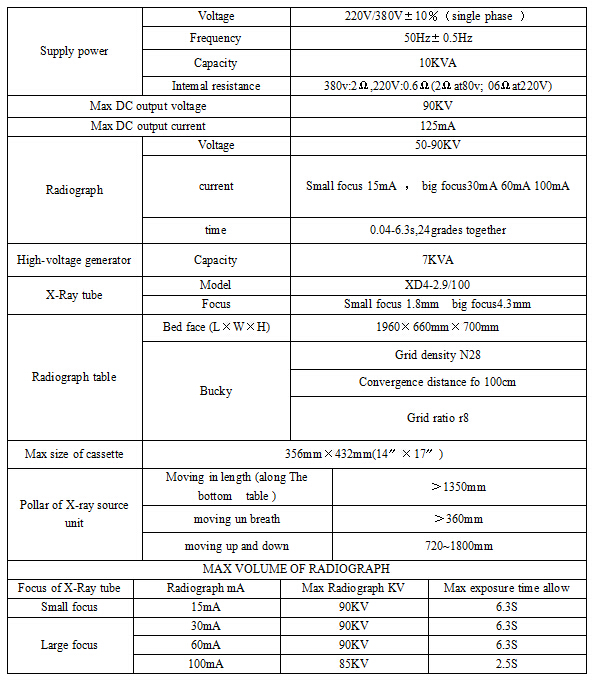

MIN TECHNICAL INDEXES
