MY-D027D High Frequency DRF Digital X-ray machine system

Multi-Purpose digital imaging solution；Large view area；smart image stitching；core technology
Item Code: MY-D027D
Write a review
Share this:
Have a question?
Price:
USD
$103,000.00
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Set/Sets 20 in Stock
Add to Favorite Items
  • Description
  • Download
Specifications

1. MY-D027D Packing List
Systems Parts Quantity
Detector Dynamic Digital Detector 1
DXRay Diagnostic Workstation 1
X-Ray System High Frequency Generator 1
Control Cabinet 1
X-Ray Tube 1
High Voltage Cables 2
Collimator 1
Motion Control System Remote Control Table 1
Remote-Control 1
Accessories Grid 1
Report Laser Printer 1
Microphone/Speaker 1



2. MY-D027D Spec
Part Remark
Dynamic Detector Detector Technology  Full-Frame CCD
Effective View Field 17”x17”
Static Pixel Matrix 3072x3072
Dynamic Pixel Matrix 1024X1024
Spot-Film Pixel Matrix 3072X3072
Spot-Film Preparation Time 0.7s
Output Grayscale 14bit
Preview Image Time 2s
Maximum Spatial Resolution 3.57lp/mm
X-ray Tube
（Toshiba E7252X）		 Tube Focus 0.6mm/1.2mm
Max Output Voltage 150kV
Heat Capacity 300kHU
Speed of Rotating Anode 9700r/min
Output Power 27kW/75kW



50KW Generator		 Power Requirement 380V with 3 Phases Wires
Maximum Output Power 50kW
Output Voltage for Radiography 40kV-150kV
Output Voltage for Fluoroscopy 40kV-120kV
Output Current for Radiography 10mA-630mA
Output Currentfor Fluoroscopy 0.5mA-20mA
Range of mAs 0.4mAs-630mAs
Auto Brightness Selection Function(ABS)
Remote Control Table Positioning for Chest-Exam / Table-Exam by Electric Control
Bed Size 2100mm×880mm×865mm
Bed Lateral Movement 240mm
SID 300-1800mm
Bed Rotate Range -15°-90°
Tube Column Rotate Range -45°-45°
High Voltage Cables of X-ray Machine Length: 8m
Grid Grid Density 40lp/cm
Grid Ratio 10:01
Focus 100cm
Collimator Max Work Dose 150kVp
Power 150W(24VAC)
Auto-close time 30s
Brightness ≥160lux(100cm)
Workstation CPU Dual-Core 3.0G
RAM 2GB,
Communication Network Card 1000m
Hard Disk 500G
Display 1920*1200Display
CD/DVD recording/burning
Software Imaging Part Indicator, Tissue Equalization, Filter Correction, Grayscale
Transform, Window/Level Adjustment, Gamma Correction, ROI Equalization
Black/White Reversion, Image Segmentation, Mark, Enhancement, Smoothing
Sharpening, Compression, Magnification, Graphic Text Report, Printing
Film Printing, Supports Standard DICOM 3.0 Laser Film Printer
DICOM 3.0 Format, Compatible to Transfer to PACS

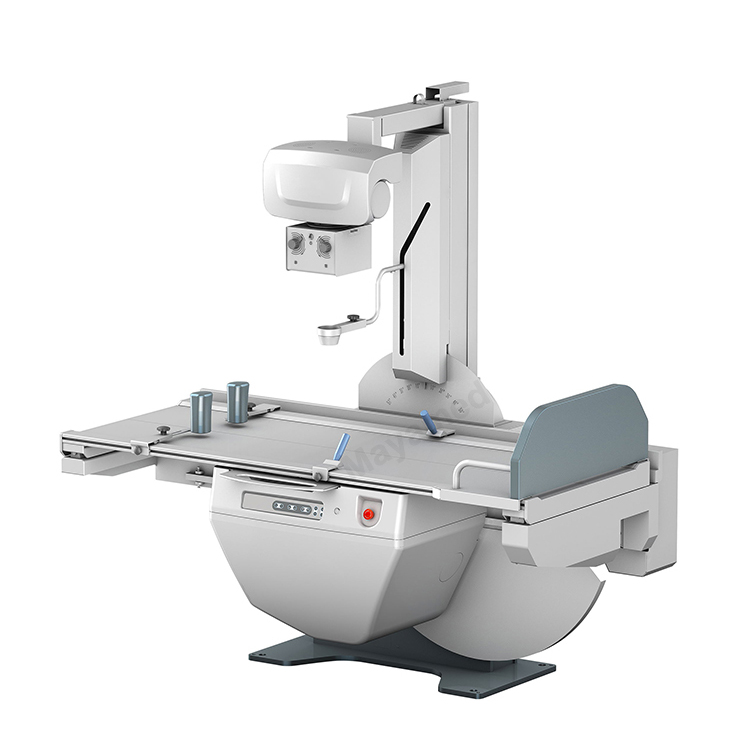

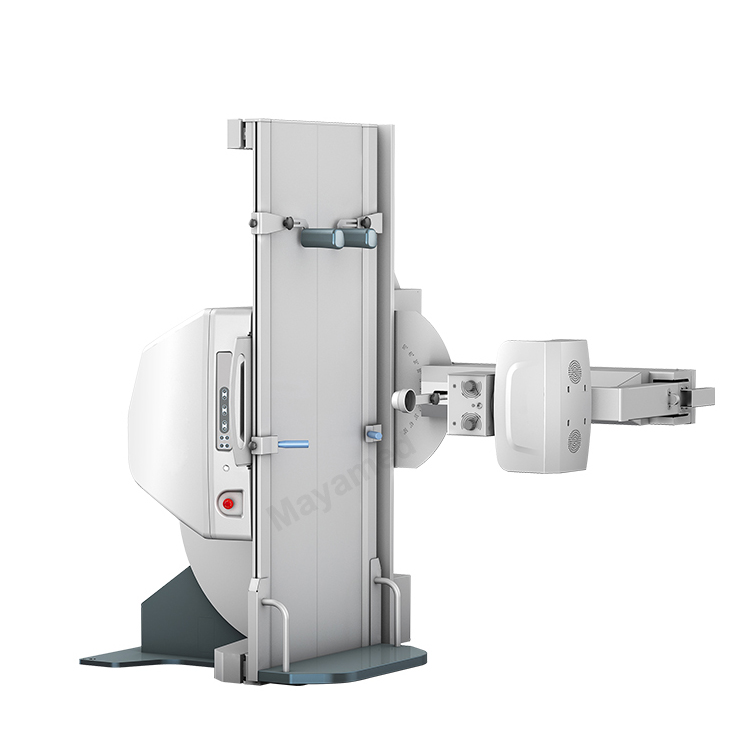

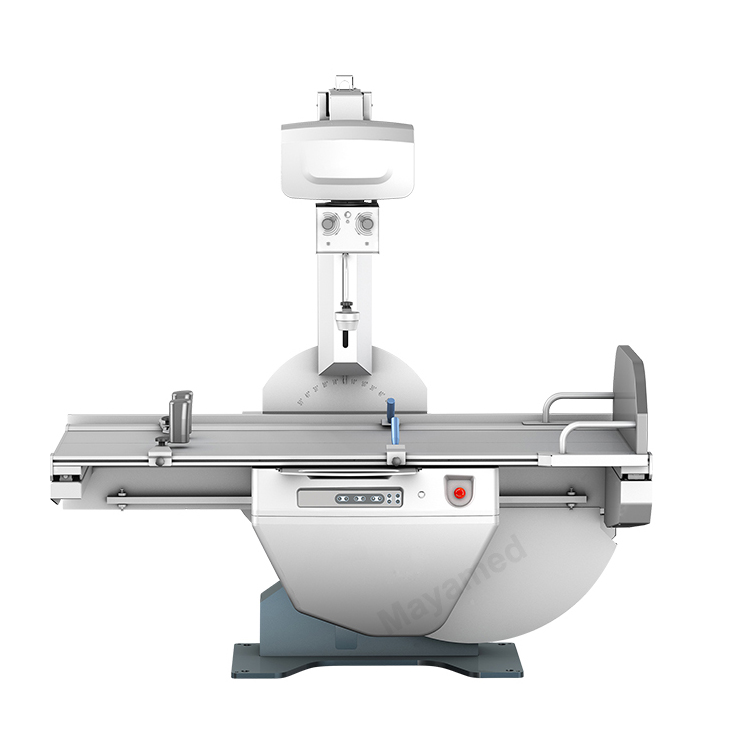

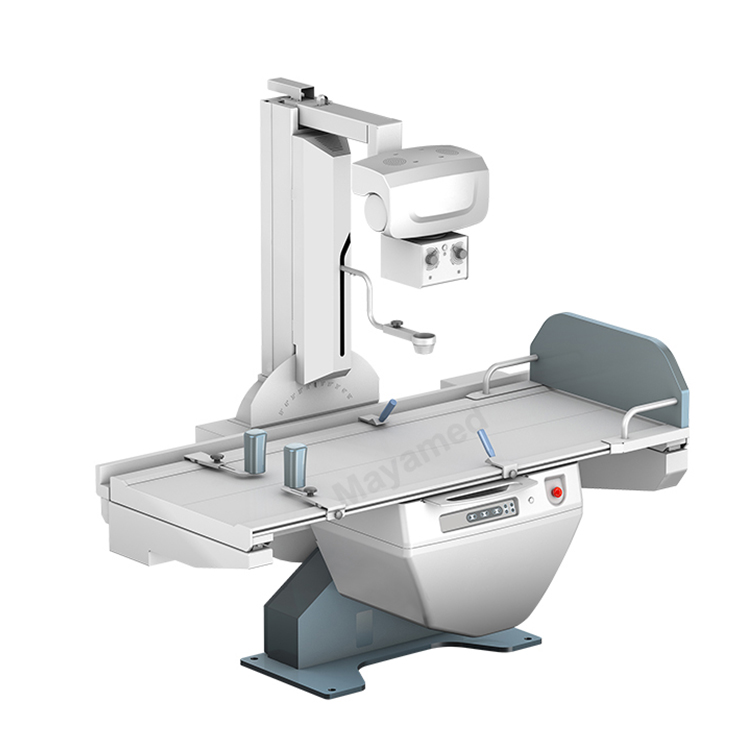

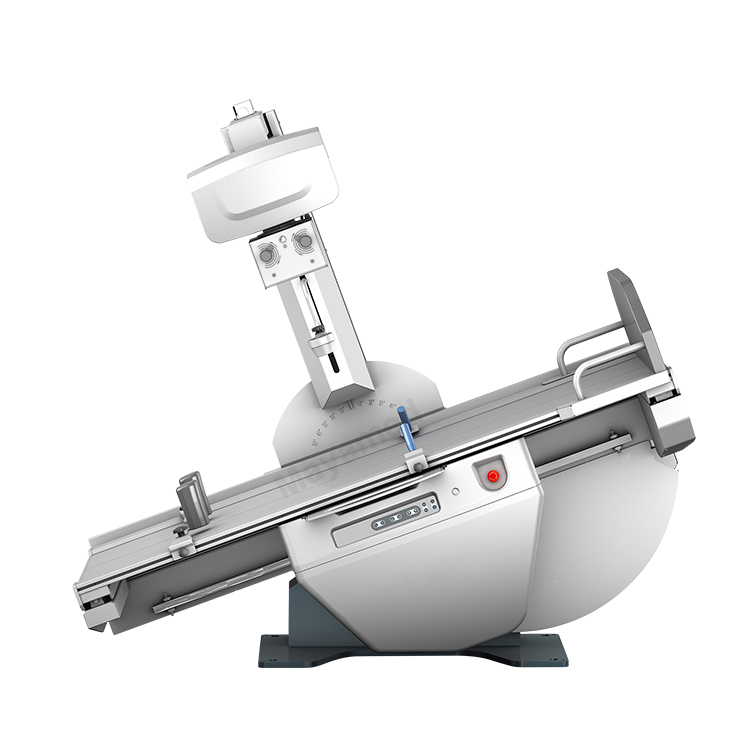

Picture of MY-D027D High Frequency DRF Digital X-ray machine system
MY-D027D High Frequency DRF Digital X-ray system--Product Catalogue.pdf
